Measure Surface Pressures in Real Time


Dr. Müller Instruments’ primary proposition is to offer our clients precisely what they require or need. To that end, everything we design can be completely tailored to your unique situation.

Only the temperature and max. pressure range is limited:

All values of surface pressures between 70 mbar to 17 bar can be analyzed by the electronic pressure measuring film. The shape and range of Tactilus mat corresponds to the applications.

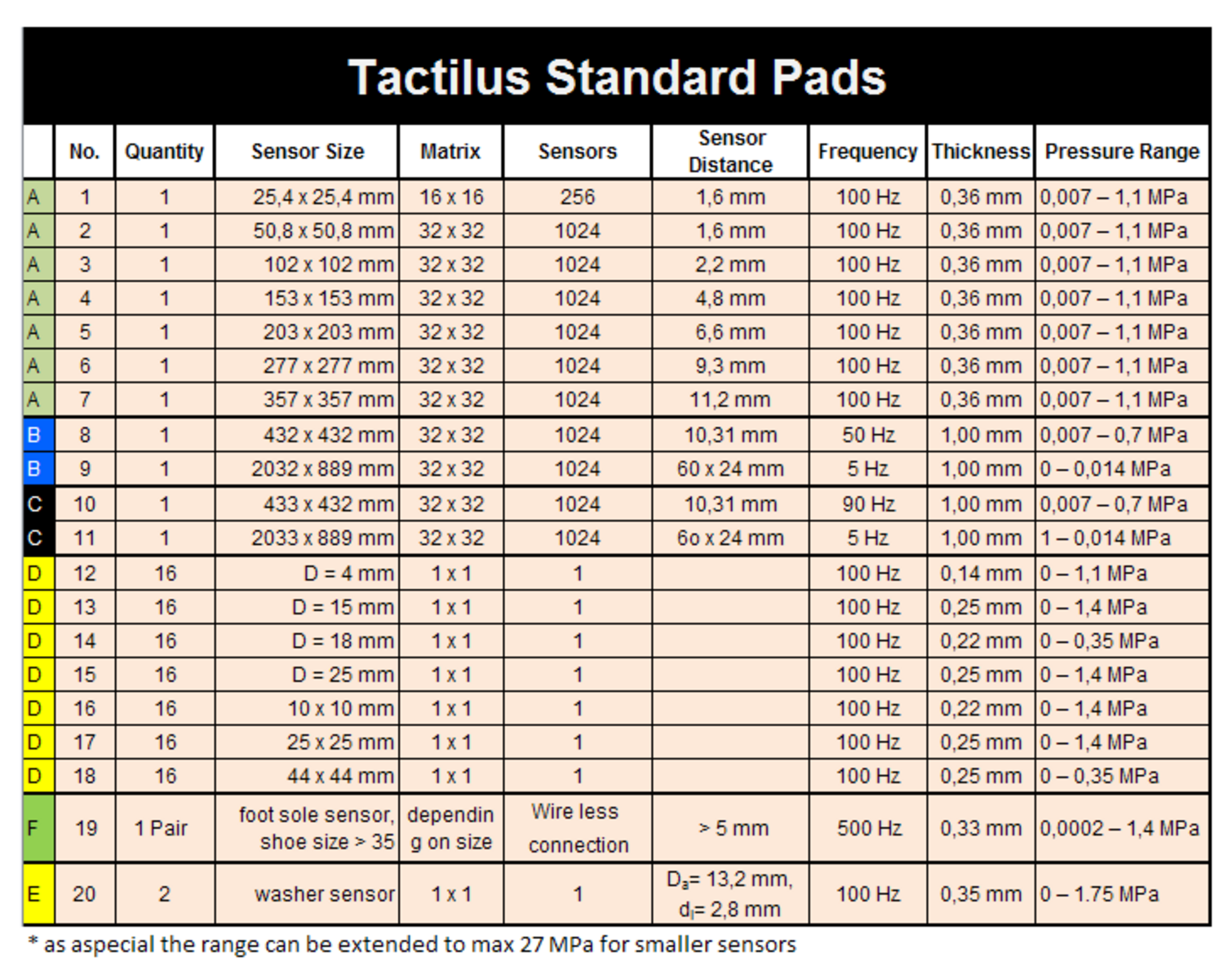

The above table shows the different standard sensors. Sensor A (on the left, sensor 4) are very thin sensors with max 11 bar and a wide temperature range up to 95°C.

The sensors B and C are large, packed sensor to measure seating pressure or other loadings. Beside the standard version all sizes up to 220 x 100 cm are possible. The size and range is made according to customer requirements. Moreover now these type of sensors are available with an elastic sensing element as well. This called Tactilus Stretch (Sensor C) has 1024 sensors as well, the measurement range last up to 6.9 bar. The elastic elongation can be choosen for 20 or 60%. This film is especially made for uneven surfaces or seat covers because wrinkles will be avoided.

The type D systems comes each with 16 individual sensors. They are available in different sizes. All sensors are measured simultaneously. The calibration range will be customized same as with the other sensors. Typical applications can be found for example in medical technology for measurements under bandages or masks or for measuring the pressure in steel coils or paper rolls. It is important that the sensor is completely loaded. Sensor E is made for measurements under washers. An additional sensor can be added to an existing system, but within the sensor type groups only (A, B and C, D and F).
